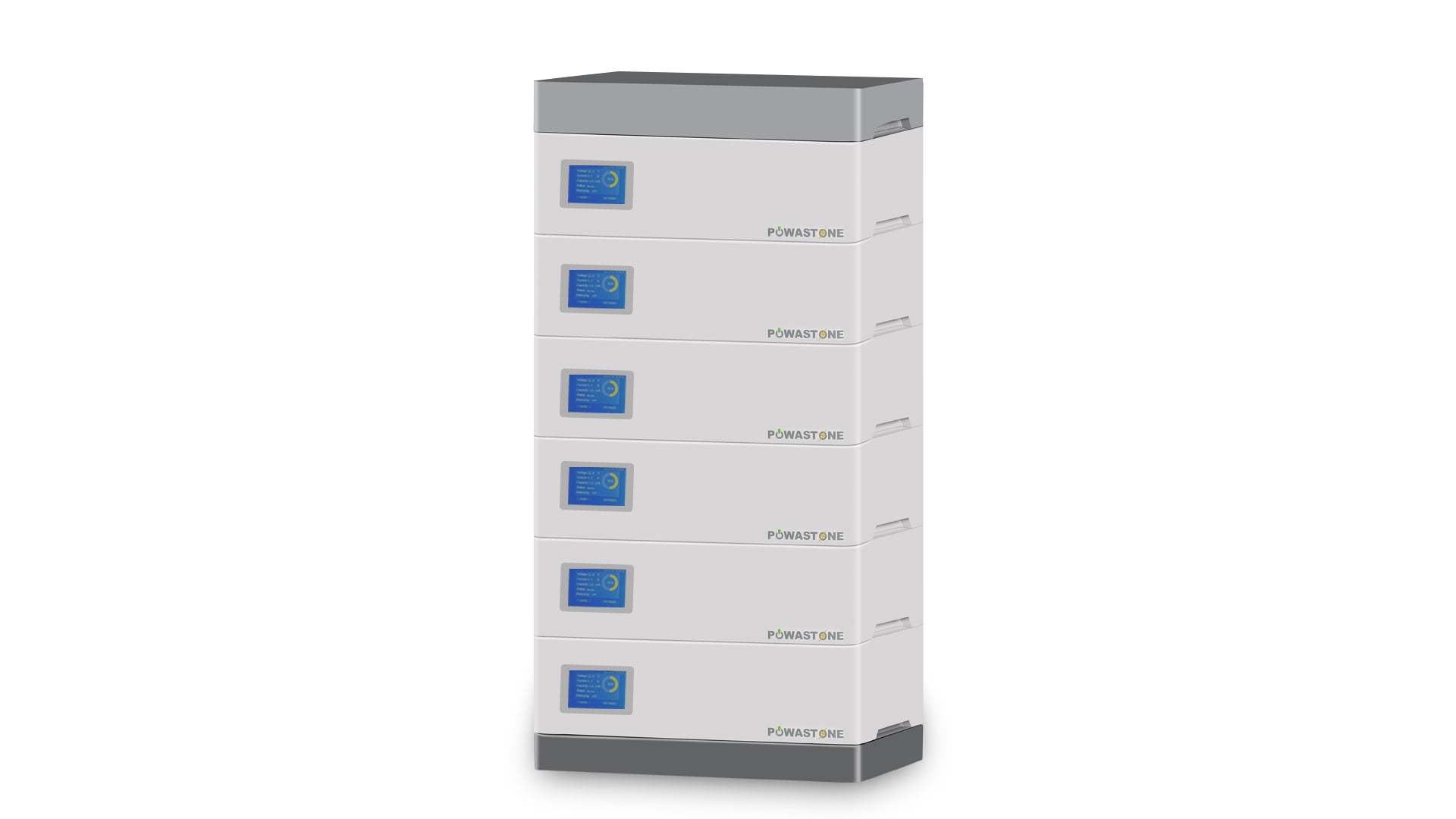

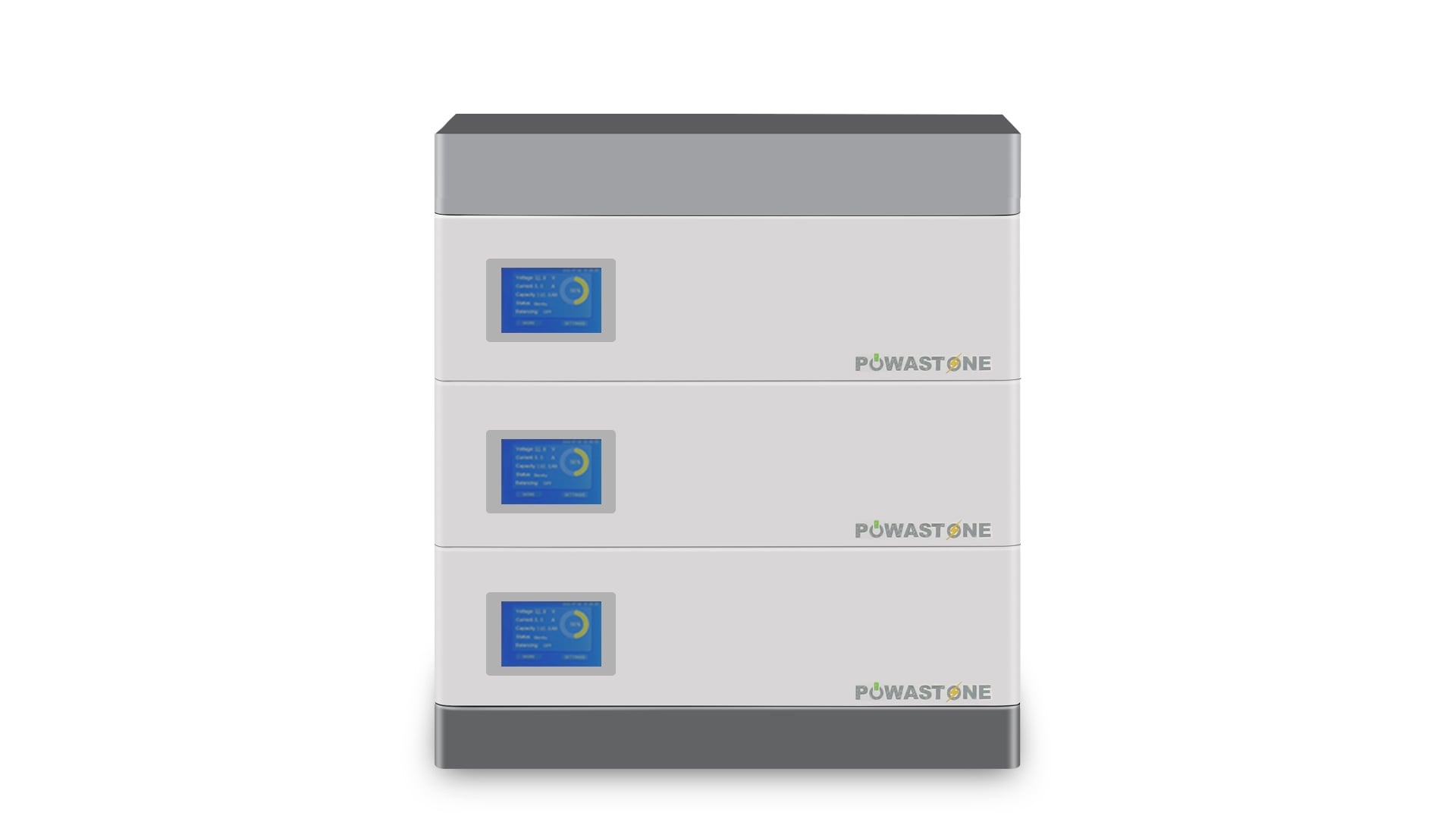

Shandong Huison 51.2v 100Ah Low Voltage Stackable Home Residential battery lithium battery Energy Storage Batteries UL1973 UN38.3 CE CB IEC62619 Certifications
- Overview
- Recommended Products
Product Overview
1.Use LFP prismatic cells 16 in series to make the 51.2v100Ah lithium battery pack,and this pack with active balanced,and cycle life about 6000+,warranty is 10 years.
the pack in parallel can up to 40pcs,also we can keep the same SOC.(you can customize the color you need)
2.BMS functions.
Our BMS with touch screen,we have 30+inverter protocals in the BMS,which one inverter you need,just touch it,and the invert and battery will be connect.you can check the video as attenched.
Also I add a datasheet,the BMS has 20+functions,just like Current limiting function( 10A),Active balancing function(max 5A),Auto DIP address setting ,7-ways temperature detection (≤1℃)...
Specifications and Parameters
Battery parameter

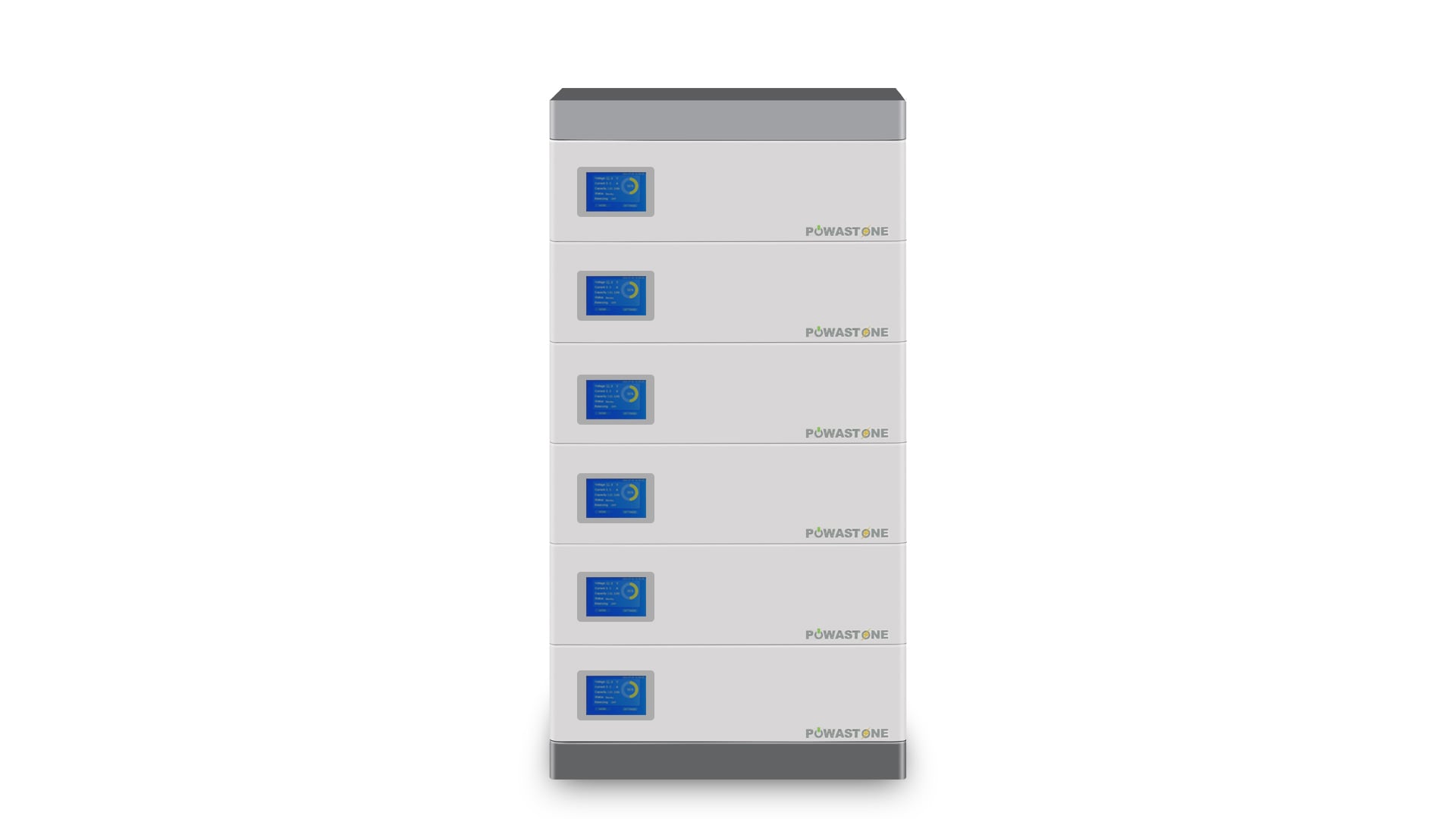

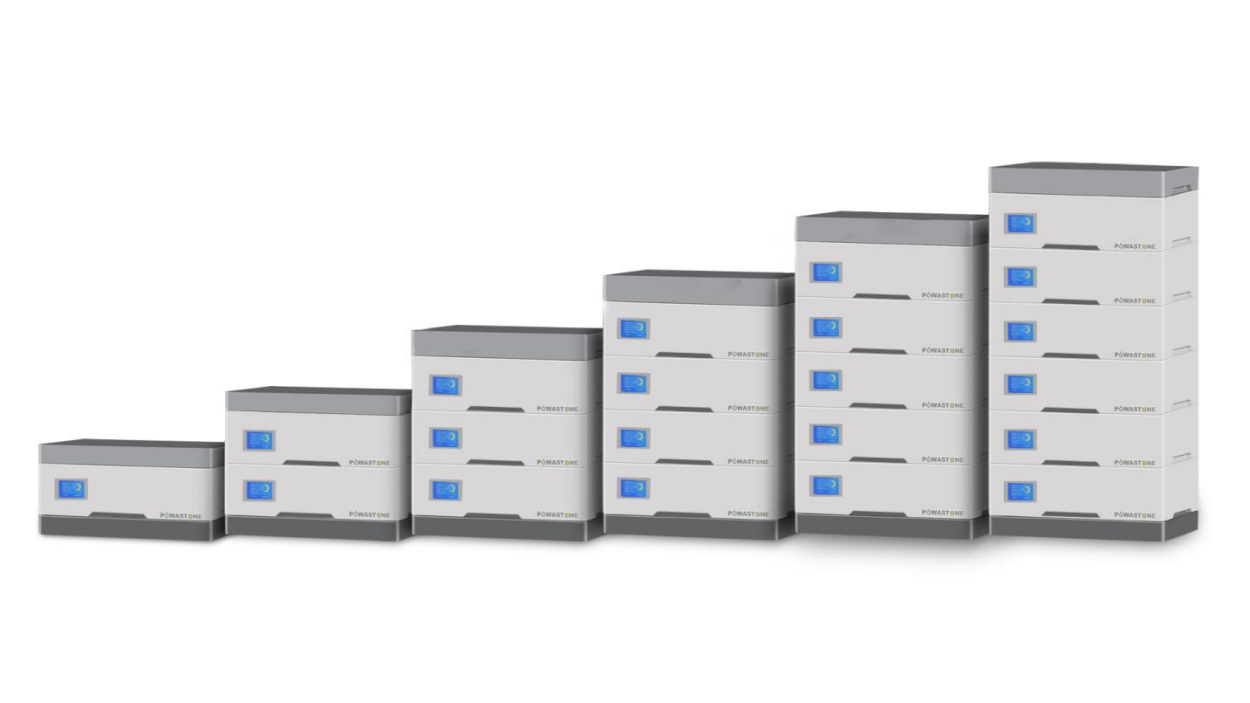

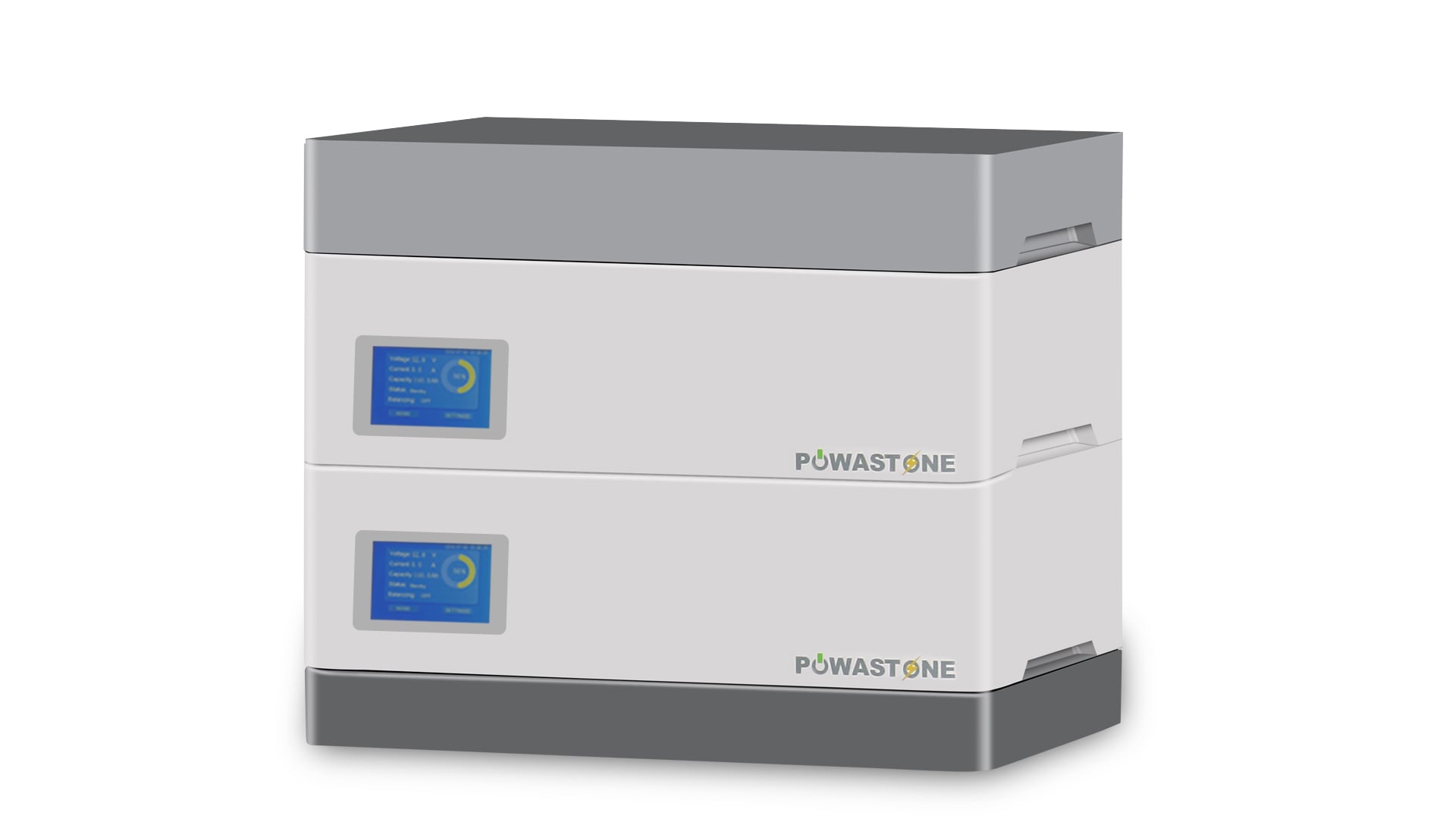

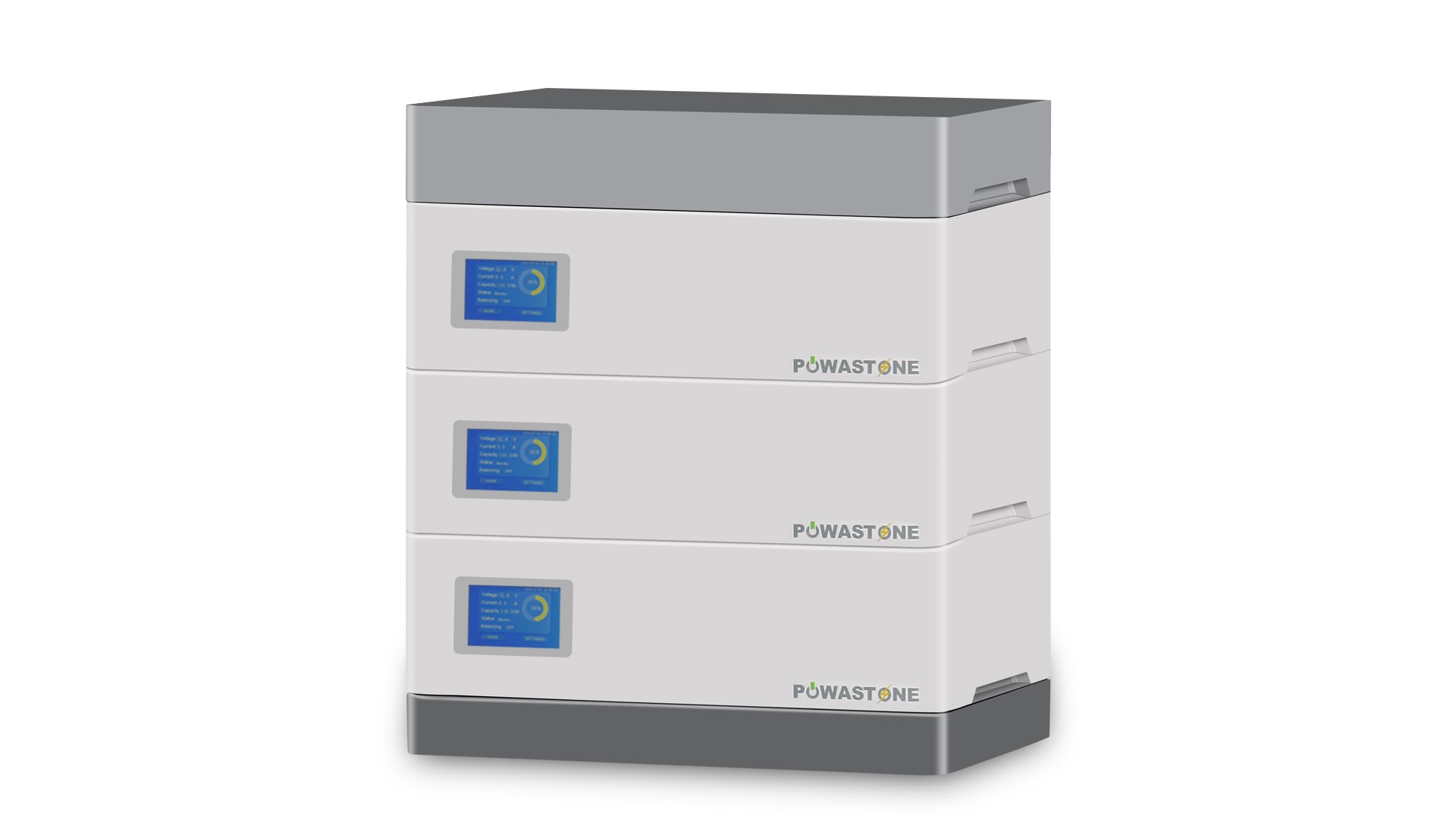

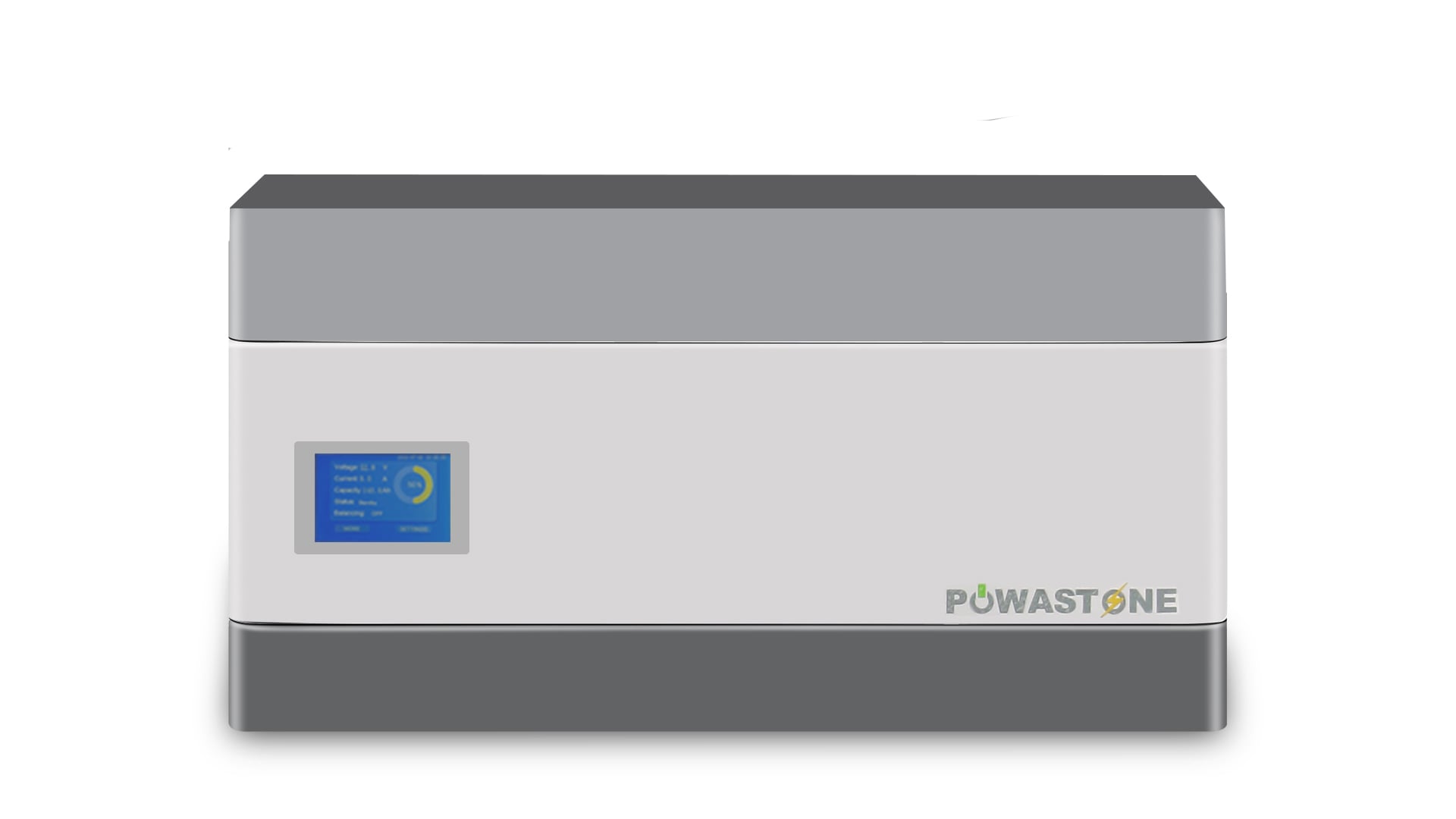

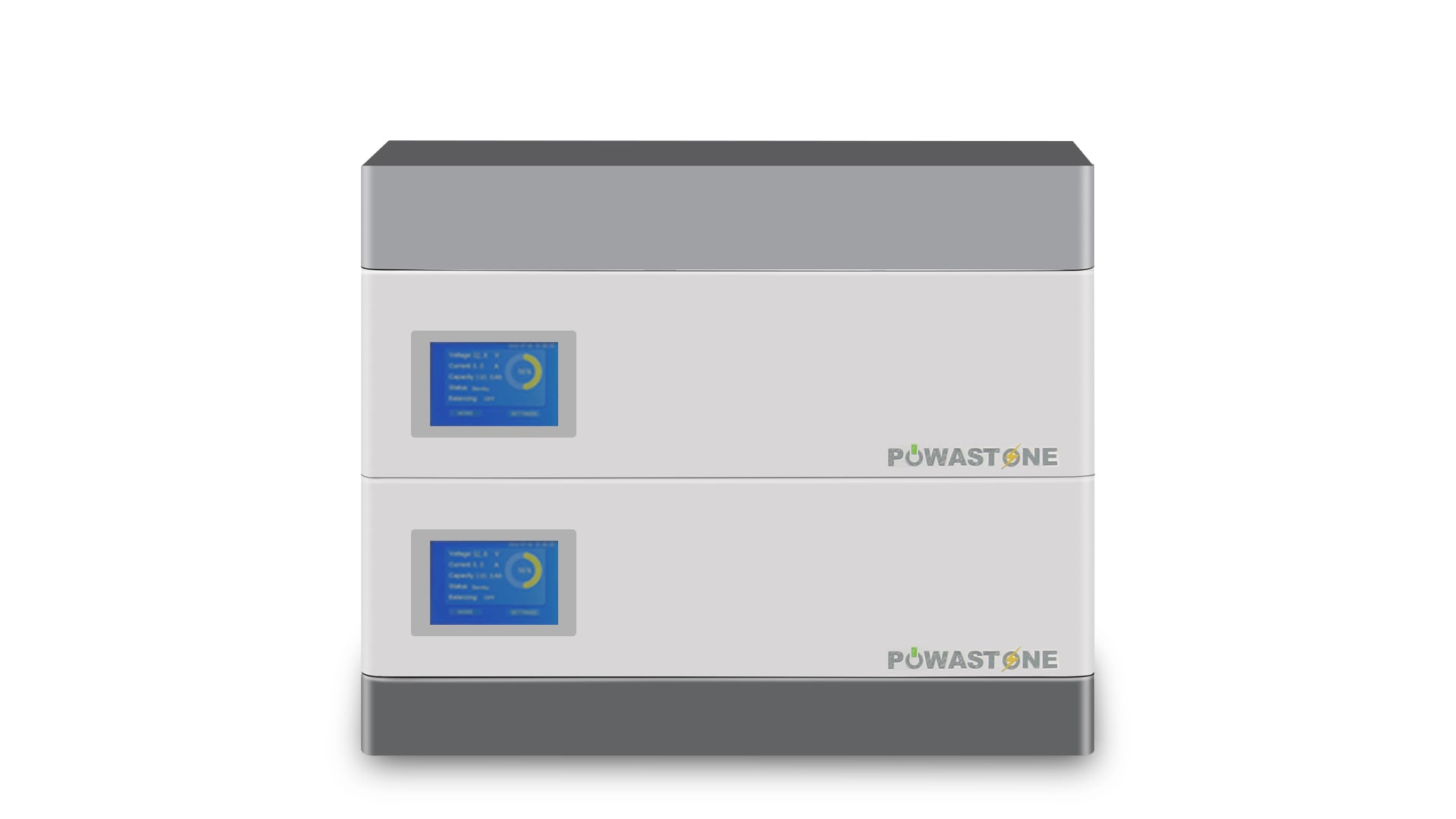

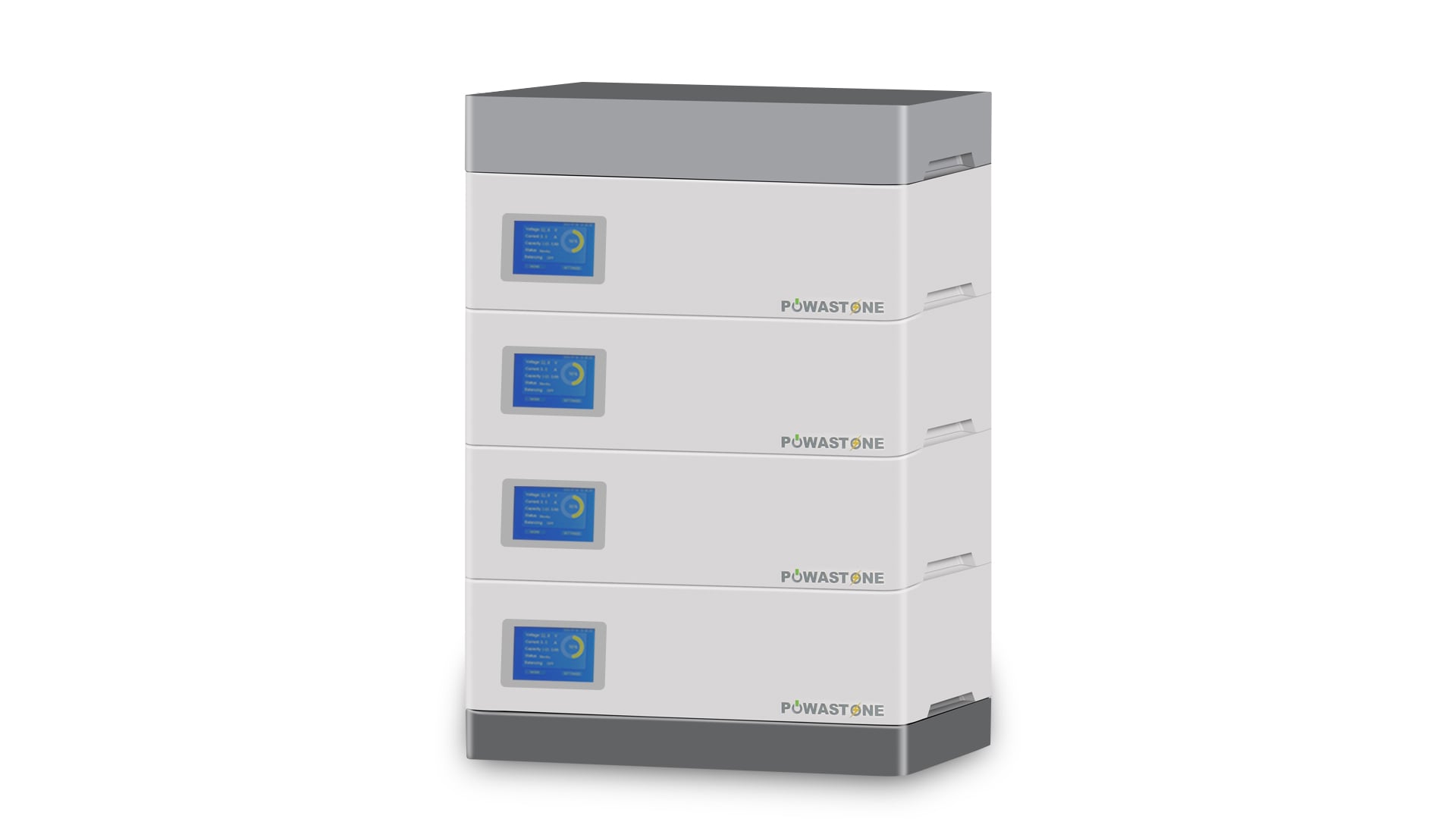

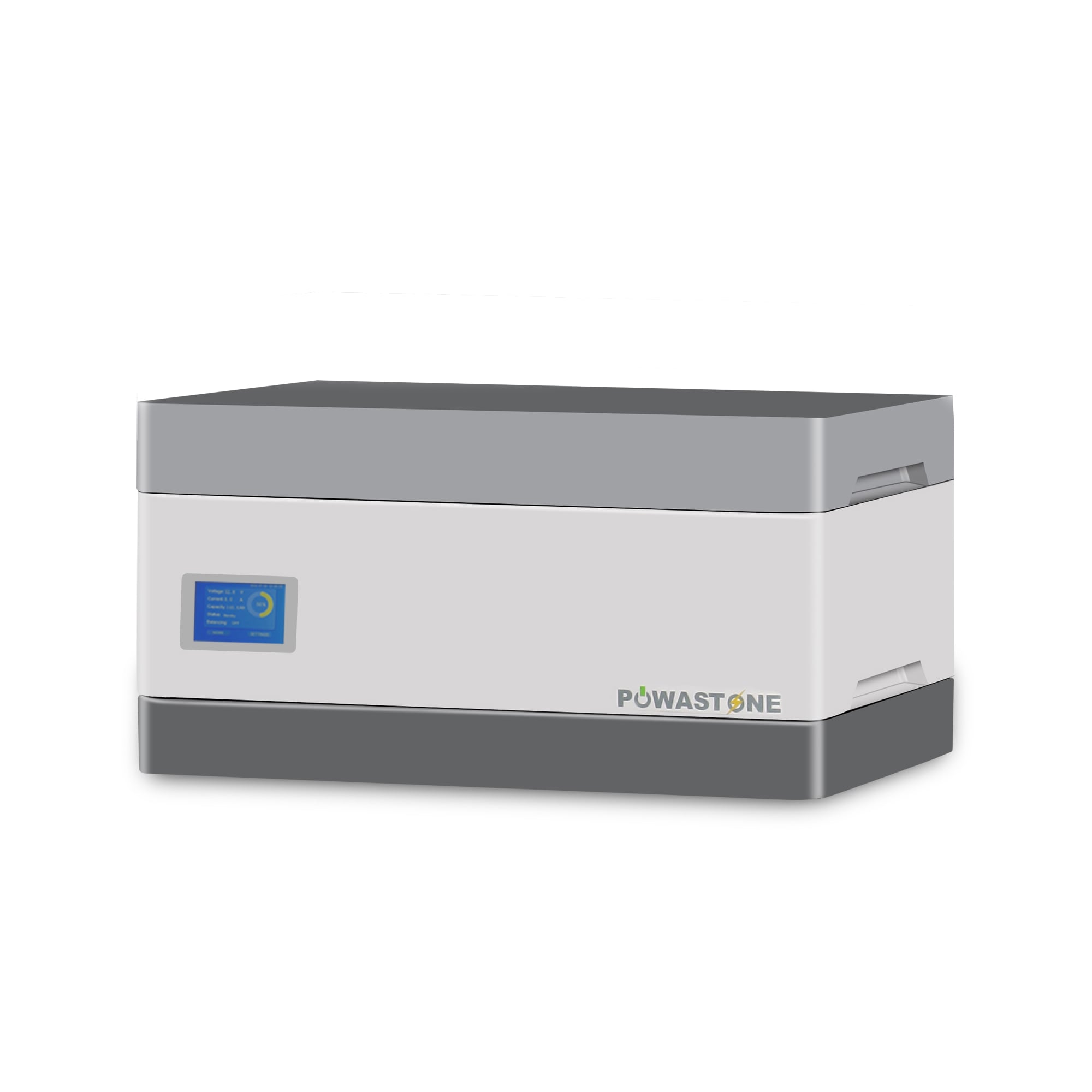

| Model | PS-5KWH-LV | PS-10KWH-LV | PS-15KWH-LV | PS-20KWH-LV | PS-25KWH-LV | PS-30KWH-LV |
| Usable energy | 5 | 10 | 15 | 20 | 25 | 30 |
| Size L*W*H | 570*400*390 | 570*400*550 | 570*400*710 | 570*400*870 | 570*400*1030 | 570*400*1190 |
| Rated voltage | 51.2 | |||||
| Rated discharge rate | 0.5C | |||||
| DoD | 90% | 90% | 90% | 90% | 90% | 90% |
| Cycle(25℃ 80% SOC) | 6000 times | |||||
| Communication | RS485/CAN/RS232 | |||||
| Weight(kg) | 70 | 120 | 170 | 220 | 270 | 320 |
| Certification | CELL:UL1973,UL9540,IEC62619,IEC62133,CE/MODULE:UL1973,IEC62619,UN38.3,CE/EMC61000,MSDS | |||||
Inverter parameter
| AC mode | 110/120/220/230Vac |
| Input voltage range | (90Vac-140Vac)±2% |
| Frequency | 50Hz-60Hz (Automatic detection) |
| Frequency range | 47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz); |
| Efficiency | > 95% |
| Conversion time | 10ms typical |
| AC backflow protection | Yes |
| Maximum bypass overload current | 63A |
AC Charging
| Max charge current | 40A |
| Charging voltage range | 40-60Vdc |
| Circuit breaker | 63A |
PV charging
| Max PV open circuit voltage | 500Vdc |
| PV working voltage range | 120-500Vdc |
| MPPT voltage range | 120-450Vdc |
| Battery voltage range | 40-60Vdc |
| Max output power | 5000W |
| PV charging current range | 0-80A |
