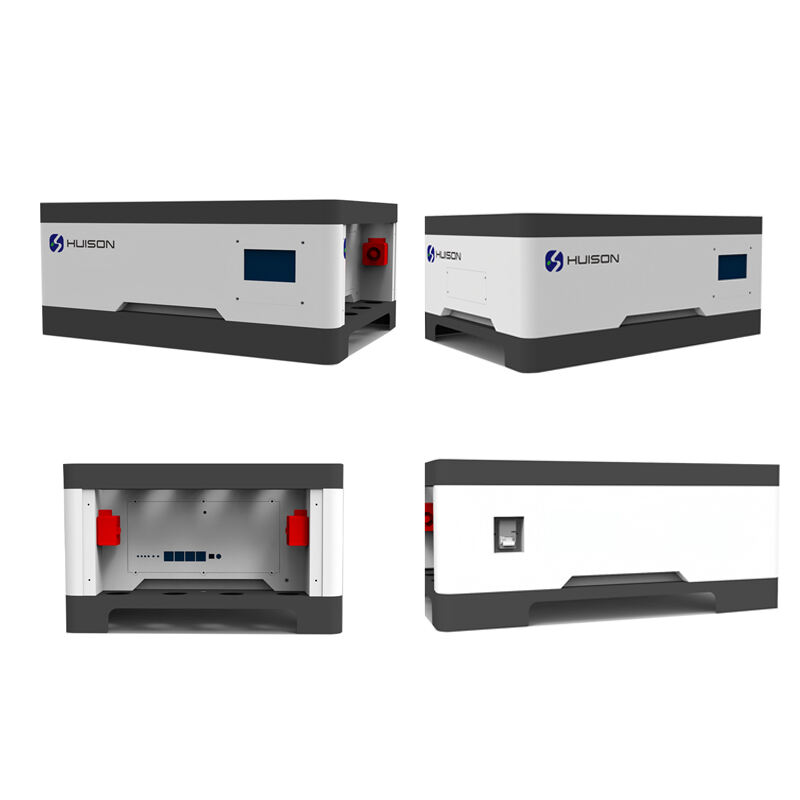

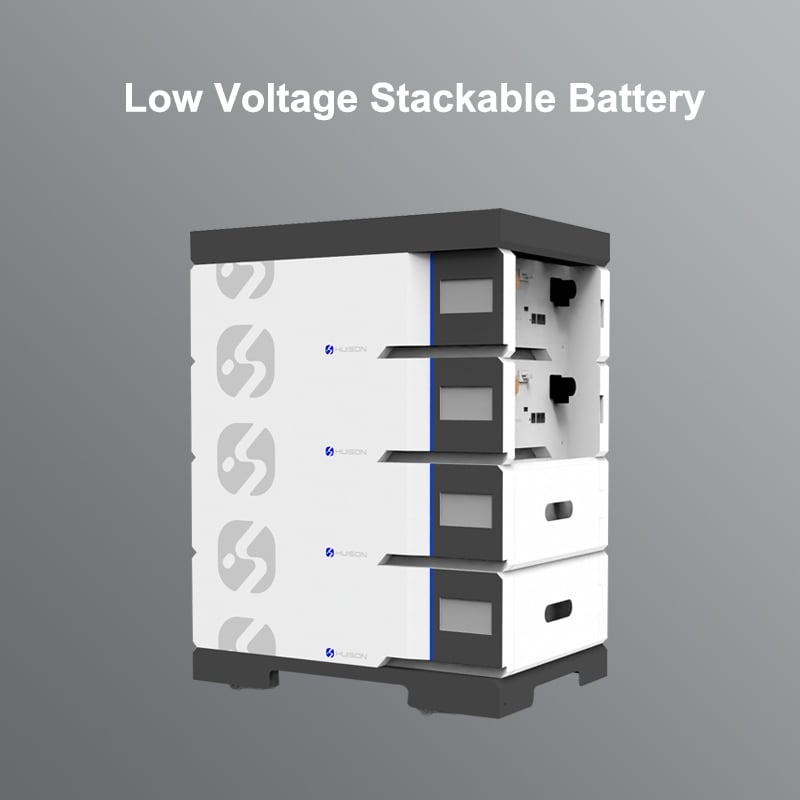

Huison 51.2V 100Ah Stackable Solar Lithium Battery LiFePO4 Batteries 5kwh 10kwh Energy Storage System LiFePO4 Battery
- Overview
- Recommended Products
Battery Module Specification
| ELECTRICAL PERFORMANCE | |
| Rated voltage | 51.2Vdc |
| Rated capacity | 100Ah 5.12kWh |
| Voltage range | 40.0~57.6Vdc |
| Charge current | ≤ 50A |
| Discharge current | ≤ 100A |
| Peak/Max current | 1.5C @10s |
| Communication | RS485 / CAN |
| Cycle times (Life) | 6000+ Times (≥10 years) @80%DOD |
| Extended quantity | Up to 32pcs in parallel (160kWh) |
| ENVIRONMENT & OTHERS | |
| IP level | IP50 Indoor |
| Charge temperature | 0°C ~ 50°C |
| Discharge temperature | -20°C ~ 60°C |
| Storage temperature | -20°C ~ 45°C |
| Certification | Cell: UL1973, UL9540,UL1642, IEC62619, IEC62133, UN38.3, etc |
| Module: UN38.3,CE, RoHS, etc | |
| Dimension | 640*450*170mm |
| Weight | 53kg |

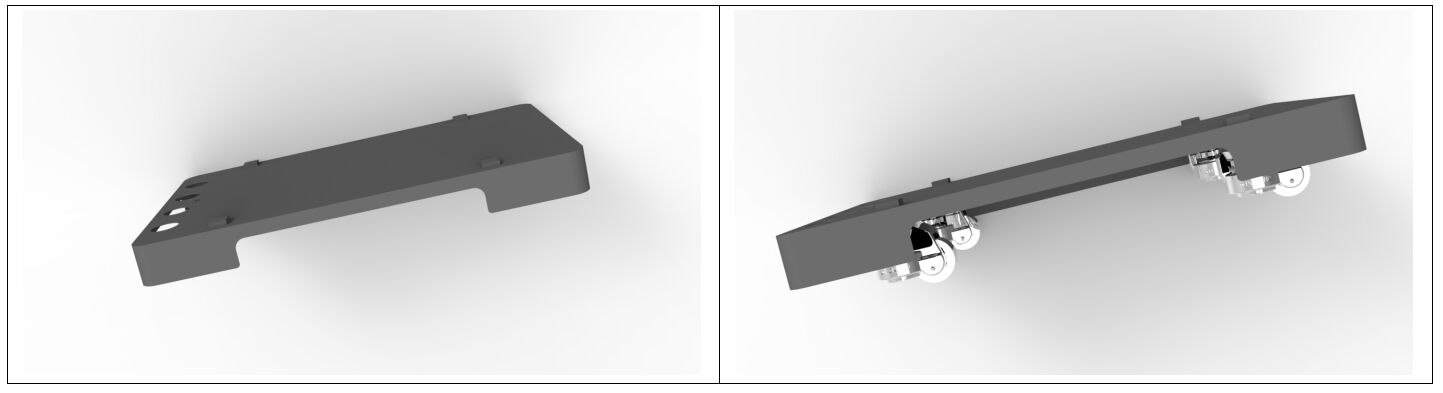

Battery lid and bottom base
| Lid mechanical performance | |
| Size | 640x450 x46mm |
| Weight | 3.1Kg |
| Threading hole | Φ42mm² |
| Bottom base mechanical performance | |
| Size | 640x450x60mm Excluding casters |
| Weight | 7.5Kg |
| Threading hole | Φ42mm² |
| load bearing capacity | 1 t, max 10 batteries |
| Casters | 4x250kg |

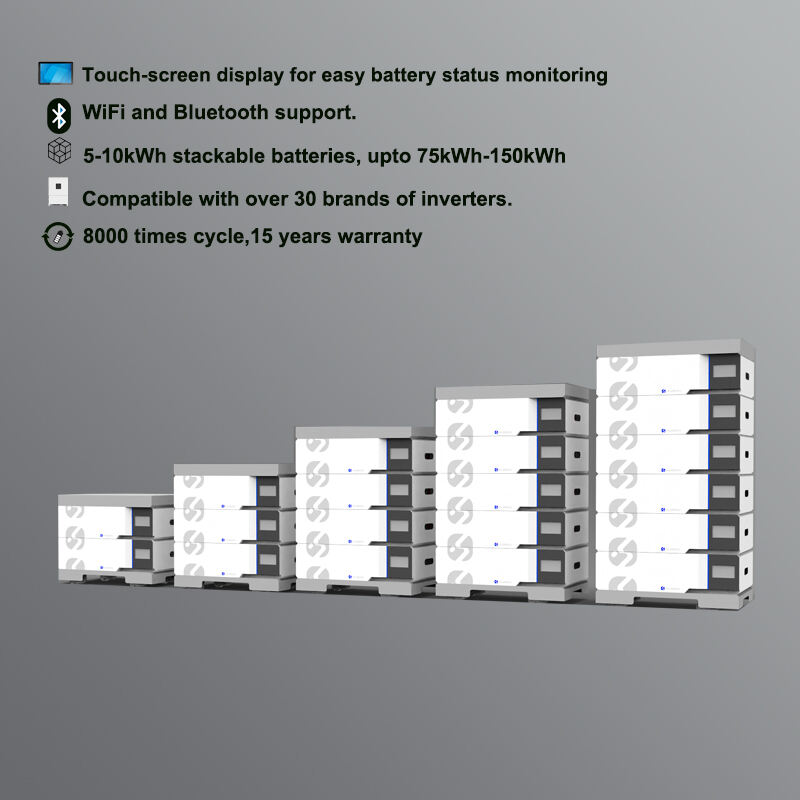

Model |
HS-LS10K100-E |
HS-LS15K100-E |
HS-LS20K100-E |
HS-LS25K100-E |
HS-LS30K100-E |
Capacity |
200Ah |
300Ah |
400Ah |
500Ah |
600Ah |
Usable energy |
10KWh |
15KWh |
20KWh |
25KWh |
30KWh |
Module quantity |
2 |
3 |
4 |
5 |
6 |
Dimension |
640*450*440mm |
640*450*610mm |
640*450*7800mm |
640*450950mm |
640*450*11200mm |
Net weight |
106kg |
159kg |
212kg |
265kg |
318kg |
Inverter brand |
VICTRON, SOL-ARK, GOODWE, DEYE, SCHNEIDER, GROWATT, PYLONTECH, SOFAR etc |
||||
Warranty service |
15Years [3] |
||||
Main kits include |
1 x Top lid & n(≥2) x Battery modules & 1 x Bottom base |
||||
[1] Test conditions: 100% DOD, 0.2C charge & discharge @+25℃
[2] System Usable Energy may be variant with different inverter brands
[3] Warranty: Refer to Huison residential product warranty
WHY CHOOSE OUR COMPANY
Founded in 2018 and our team are with over 15 years experiences
1.Advanced Technology and Innovation
Cutting-Edge Research & Development: HUISON continuously invests in R&D to bring
forth state-of-the-art lithium battery technology. Our batteries are designed to offer high energy density,
long life cycles, and superior safety features.Intelligent Battery Management Systems (BMS): Our Sself designed
BMS ensures optimal battery performance, compitable with over 30 brands of inverters.
2. Comprehensive Product Range
Diverse Capacity Options: We offer a wide range of battery capacities tailored to
fit various home energy storage needs, from small residential systems to large-scale commercial applications.
Modular Design: Our modular design allows for easy scalability and customization,
adapting seamlessly to your evolving energy requirements.
3. Quality Assurance and Certifications
Certified Quality: HUISON holds numerous international certifications (e.g., CE, UL1973,
UL9540A,IEC62619) ensuring our products meet the highest safety and performance standards.
Rigorous Testing: Every battery undergoes stringent quality control measures and extensive
testing to guarantee reliability and durability.
4. Sustainable Practices
Eco-Friendly Production: We prioritize environmentally responsible manufacturing processes,
minimizing waste and emissions.
Battery Recycling Program: Our commitment to sustainability extends to a comprehensive battery
recycling program, reducing environmental impact and promoting circular economy principles.
5. Customer-Centric Services
Technical Support: Our dedicated team of engineers and technicians provides round-the-clock
technical support, ensuring your system operates efficiently.
Custom Solutions: We offer bespoke solutions tailored to your specific needs, backed by
our expertise in energy storage systems.
Global Reach: With a global network of partners and service centers, we ensure prompt and
efficient after-sales service wherever you are.
6. Cost-Effective Solutions
Competitive Pricing: HUISON offers cost-effective energy storage solutions without
compromising on quality or performance.
Long-Term Value: Our batteries' extended lifecycles and high efficiency contribute to lower
overall costs and a faster return on investment.
Visit Our Website For more information on our products and services, visit www.huisonbattery.com.
Discover how SHANDONG HUISON ELECTRONICS TECHNOLOGY CO., LTD. can be your ideal partner in home energy storage solutions.
