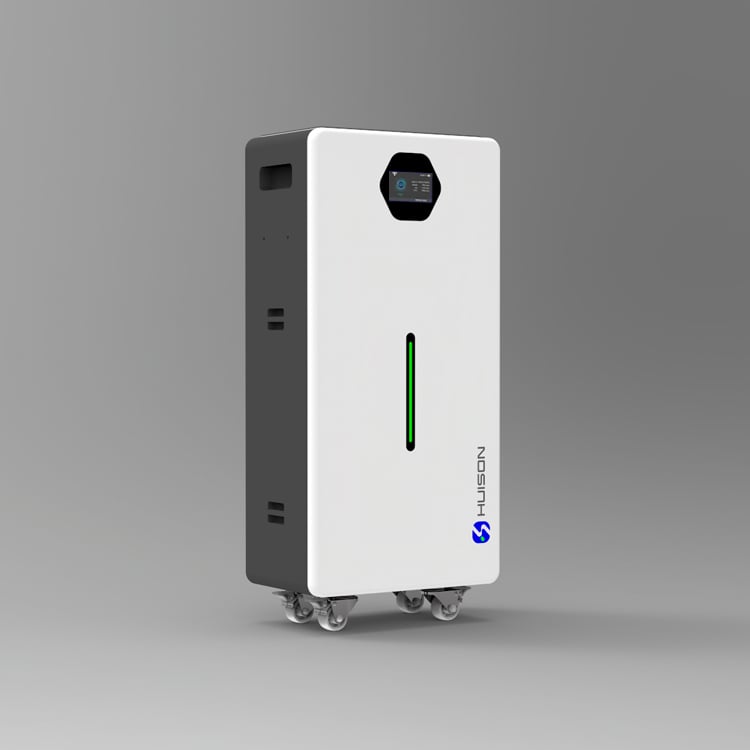

16KWH51.2v314Ah Low Voltage LFP Battery LiFePo4 Home Energy Storage Battery Can Match Deye Goodwe inverter
- Overview
- Recommended Products


ELECTRICAL PERFORMANCE
| Rated voltage | 51.2Vdc |
| Rated capacity | 314Ah 16kWh |
| Voltage range | 40V ~ 57.6V |
| Charge current | ≤ 150A |
| Discharge current | ≤ 200A |
| Peak/Max current | 1C @10s |
| Communication | RS485 / CAN |
| Cycle times | 8000+ Times @80%DOD |
| Extended quantity | Up to 32pcs (512KWh) |
ENVIRONMENT & OTHERS
| IP level | IP65 Outdoor |
| Charge temperature | 0°C ~ 50°C |
| Discharge temperature | -20°C ~ 60°C |
| Storage temperature | -20°C~ 45°C |

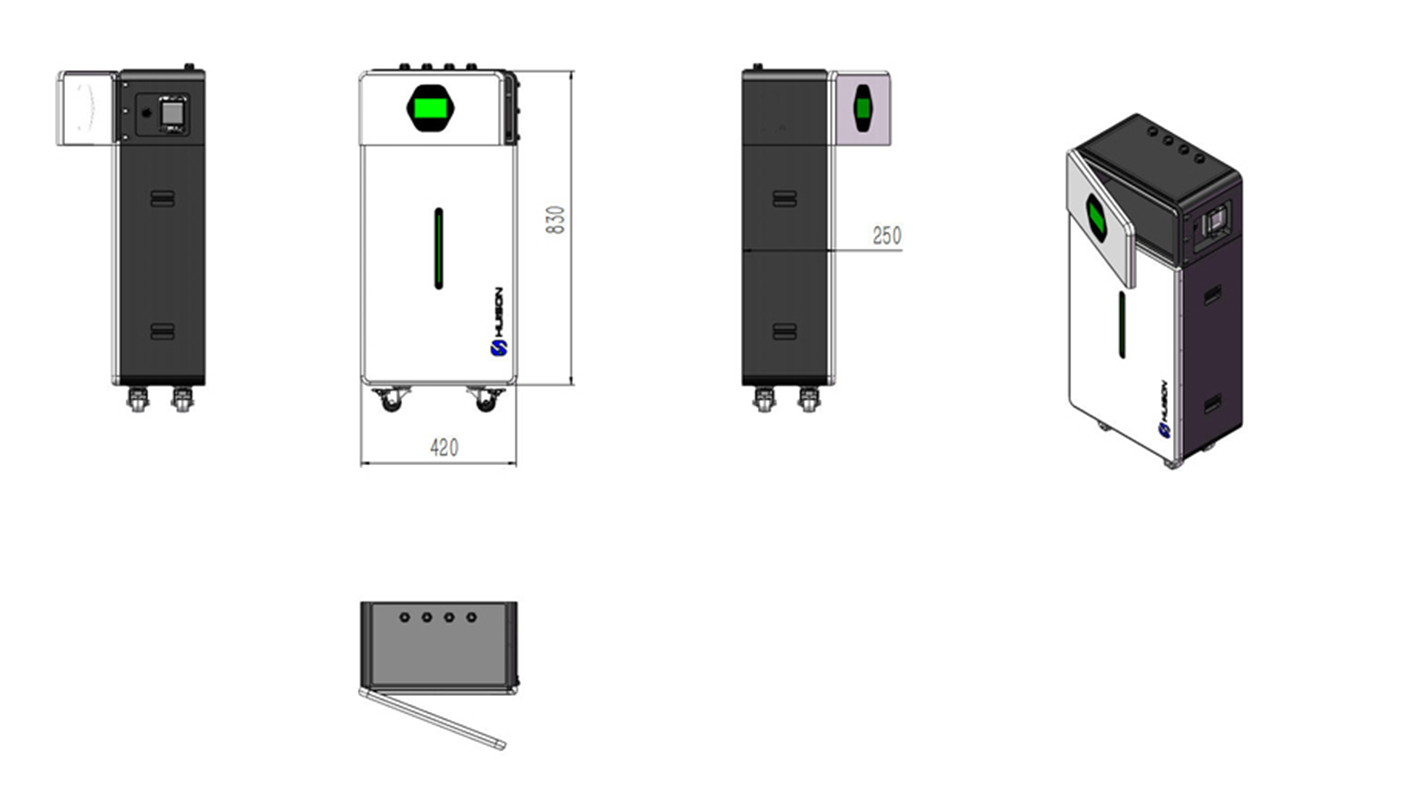

| Dimension | 830x420x250mm |
| Compatible inverter | DEYE, SOFAR,GOODWE,SELECTRONICS, PYLONTECH ETC |
| Weight | 115kg |
FEATURES

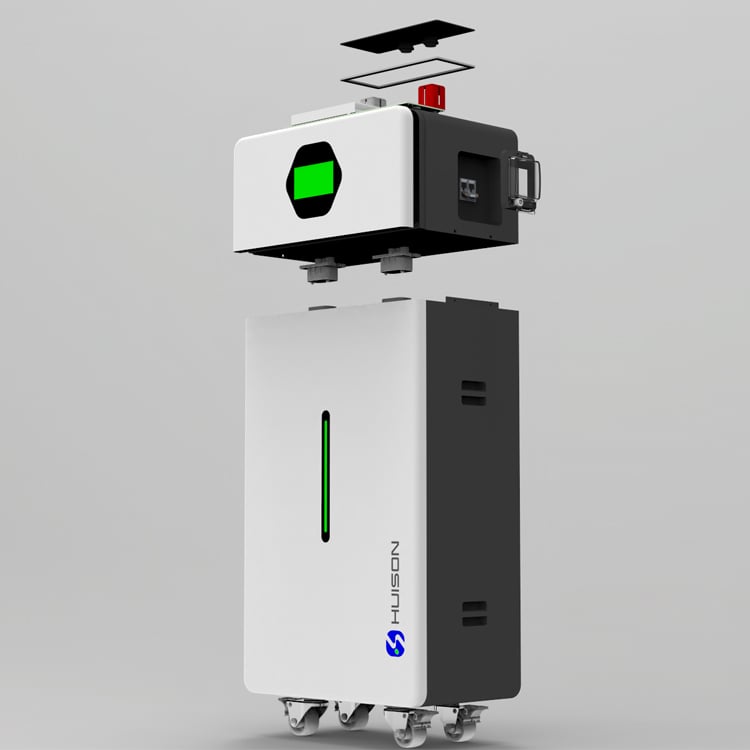

● Repairable design, easy installation and subsequent maintenance
● Up to 32 parallel connectivity
● Optional casters or wall mounting
● Connect to 30+ brand inverters
● Can cooperate with customers to make changes to product details
● Can provide customers with their own certification
BMS
● SOC estimation function( ±5%)
● High integrated analog front- end
● Short circuit protection
● Dual/ RS485/ CAN Communication
● Current limiting function( 10A)
● Multiple wake-up modes
● Support customized inverter protocol
● Data storage and query function
● Port upgrade function
● High voltage accuracy ( 0~45℃ +10mV)
● Touch display
● Parameter adjustable setting
● Auto DIP address setting
● High current accuracy ( ≤2%@FS)
● Alarm record
● Low power consumption
